500~2000kg Auto Granule Jumbo Bag Packing Machine For Chemical

  • 1
  • 2

Place of Origin : Jiangxi, China

Brand Name : BlueRay

Model Number : DCS-50/2T

Certification : CMC

Supply Ability : 100 Set/Sets per Month granule packing machine

Packaging Details : 1.normally packing in wooden cases(FCL, 20 feet container). 2. If any special requirements ,we will pack it as requested.

MOQ : 1 Set/Sets

Price : $5,000.00 - $15,000.00 / Set

Type : Other

Condition : New

Application : Chemical, Commodity, Food, Machinery & Hardware, Textiles

Packaging Type : Bags, Cartons

Packaging Material : Wood

Automatic Grade : Automatic

Driven Type : Electric

Voltage : 220V/380V

Power : About 6KW

Weight : About 1 T

Dimension(L*W*H) : 1840*2440*4175mm(L*W*H)

Name : 500~2000kg auto granule packing machine for fertilizer,agro,chemical

Material : Carbon Steel

Precision : 2‰

Rate weighing : 500-2000kg

Packing speed : 5-10 bag/hour

Installation height : 4175mm

OEM : Yes

Life time : More than 10 years

Warranty : 1 Year

Color : White and blue

After-sales Service Provided : Engineers available to service machinery overseas

Port : Shanghai or any port in China

Contact Now

Product Description

Product Name

Belt feeding mechanism jumbo/bulk/ton/FIBC bags packing

filling bagging machines

Item

DCS-2T

Application Materials

Flake,lump,block,aggregation,mixture materials,such as gravel,pebble,

stone,manure,organic fertilizer, soil, sawdust,animal feed(big size/

mixture),coal briquette, aluminum sulfate etc

Display Resolution

5g, 10g

Weighing Range

500-3000kg/bag or customized needs

Precision

+/-(0.1)% FS

Packing Capacity

10-30 bags/hour or more fast depends on your materials

Dimension(L*W*Hmm)

1840*1840*4500mm, See detailed drawing, the size can be

customized according to your site

Power Supply

AC220V/380V, 50HZ, 1P/3P

Air Source

0.5-0.7 Mpa

Power

3KW-6KW

Working Temperature

-10~40 ℃

Relative Humidity

≤90% RH(Non-condensing)

Application

500~2000kg Auto Granule Jumbo Bag Packing Machine For Chemical

Detailed Images

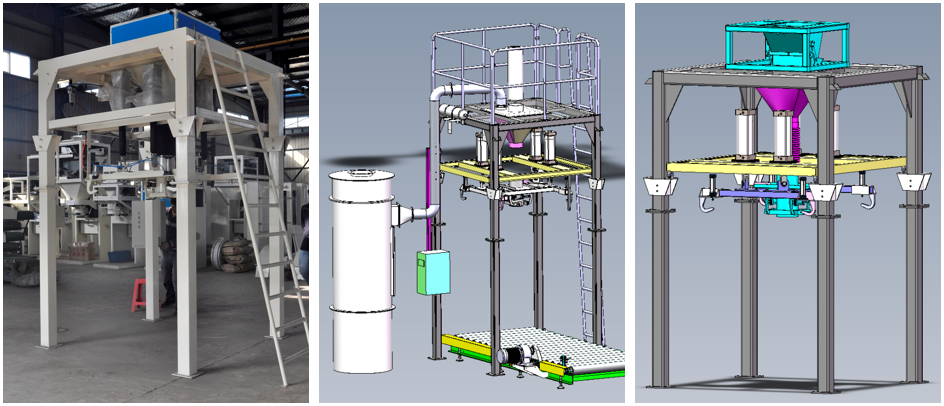

DCS-2T/D belt feeding JUMBO/FIBC/BULK BAGS bagging/filling/packing machine picture

500~2000kg Auto Granule Jumbo Bag Packing Machine For Chemical

Working Process

500~2000kg Auto Granule Jumbo Bag Packing Machine For Chemical

Automatic filling-automatic weighing-manually bag placing-automatic bag clamped-materials automatic discharge-automatic bag loose-automatic conveying

Advantage
500~2000kg Auto Granule Jumbo Bag Packing Machine For Chemical

Control Box

+Full touch screen panel
+PLC system
+Photoelectric sensor switch
+English/Chinese view
+Easy operation interface
+Proction data record & print
+Connect computer available

Four pieces of Load Cell

(weighing sensor)

+Famous brand load cell, more stable
+Installed 4pcs load cell, high weighing accuracy

500~2000kg Auto Granule Jumbo Bag Packing Machine For Chemical
500~2000kg Auto Granule Jumbo Bag Packing Machine For Chemical

Three-travelling Air Cylinder(gravity feeding)

+Control by the PLC system and three-travelling
air cylinder, feeding speed with fast-midium-slow, it can effectively solve the contradiction of speed and precision

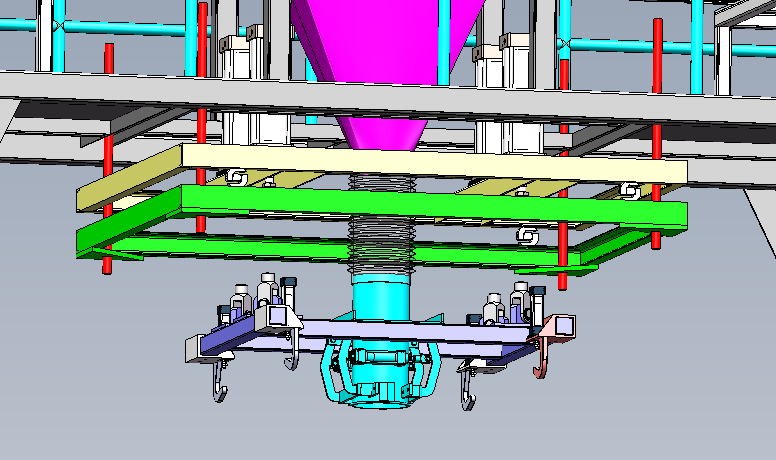

Automtic Bag Clamp/Lifting Mechanism

+Automatic bag clamp/release device photoelectric sensor switch for start&stop instal 4pcs air cylinder with pneumatic control
+Lifting device, 4pcs cylinder control, do the step of squat down bag to avoid materials in your bag be piled to tip shape
+Bag pothook, 4pcs hook with lock design,control by 4pcs cylinder with strong clamp force, avoid bag drop out

500~2000kg Auto Granule Jumbo Bag Packing Machine For Chemical

500~2000kg Auto Granule Jumbo Bag Packing Machine For Chemical

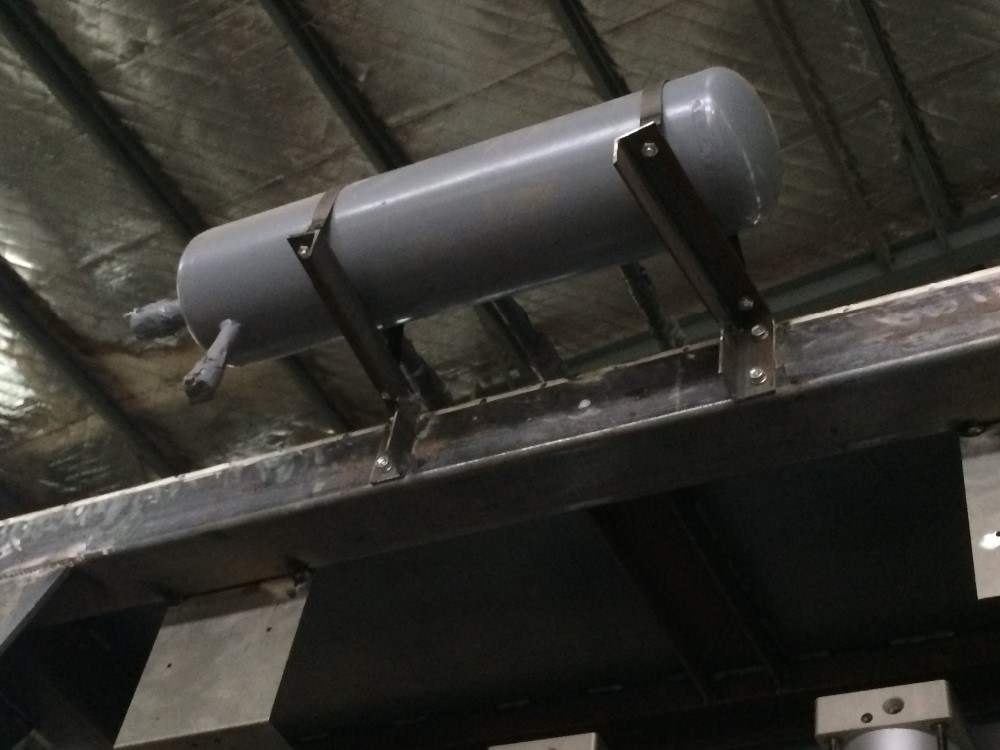

Air Receiver

+storage air from the air compressor
+machine working more stable and smoothly
+improve packing speed and weighing accuracy

Packing & Delivery
Packing & Delivery

500~2000kg Auto Granule Jumbo Bag Packing Machine For Chemical

Related Products

500~2000kg Auto Granule Jumbo Bag Packing Machine For Chemical

Our Company

500~2000kg Auto Granule Jumbo Bag Packing Machine For Chemical

Flowing chart:

Raw materials-cutting-drilling-welding-folding-polishing-rust prevention-paint spraying- assembling-

testing-packaging and transport-after service

500~2000kg Auto Granule Jumbo Bag Packing Machine For Chemical

FAQ

Q1: How could I choose the right packing machine?

A: We have various item of packing machine to suit for pack different materials(products), just let me know your

product and requirement, we will choose the suitable item and make a drawing for you to confirm. Also your customize design are availbale, we have more than 10 person engineers team and R&D team.

Q2: What's service you can provide if we buy your machine?

A: 1, One year quality guaranteed, during this guarantee period, no matter what’s kind of parts damaged, we will provide

free change for you. All equipment for more than a year warranty, exchange of damaged parts, only charge a cost of

spare parts.

2, We will provide you the guide service on the operation of the machine.

3, If required, we will dispatch technician to your country for installation guide, commissioning& adjusting the machine and training the workers on conditon that you need affords all cost from China to your company including food,

accommodation, transportation etc and extra USD80 per day.

Q3: What's your terms of payment?

A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you

pay the balance.

Q4: What is your terms of delivery?
A: EXW, FOB, CFR, CIF

Q5: How about your delivery time?
A: Generally, it will take 30 to 40 days after receiving your advance payment. The specific delivery time depends on the

items and the quantity of your order.

Q6: Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q7: How do you make our business long-term and good relationship?
A: 1, We keep good quality and competitive price to ensure our customers benefit
2, We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
